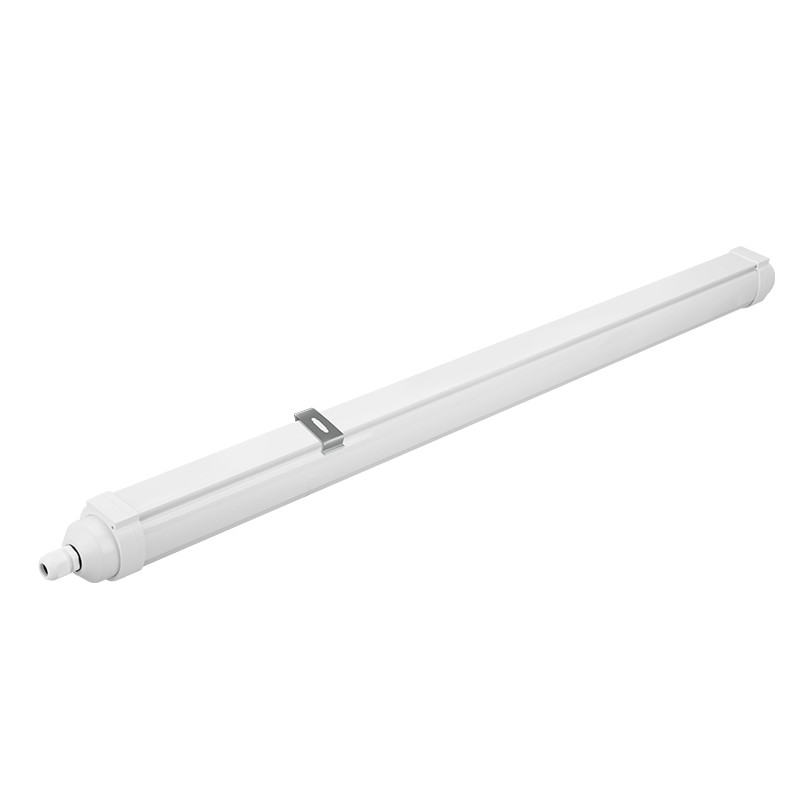

LED Tri-proof Light – H series
Sturdy, reliable and long‑lasting, this H‑series IP65 LED waterproof light fixture features high luminous efficiency and excellent energy‑saving performance, covering power options from 21‑52W. Its fully sealed construction delivers reliable dust‑proof and water‑proof performance. It provides uniform, soft illumination, ideal for warehouses, parking garages, basements and other damp, dusty industrial and commercial spaces. Straightforward installation helps save labor time for various project deployments.
option:
microwave sensor
DALI
dimmable
linkable
EMERGENCY
CCT Switch
Technical Data
| Model | Item Code | Lamps Size(mm) | Power(W) | Power Factor | Lumen | Light Efficacy | Color Temp(K) | CRI | Beam Angle | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|
| T8H106‑21 | TH1L35H1060121 | 610*71*71 | 21W | 0.9 | 3150lm | 110lm/W | 3000K/4000K/5700K/6500K | 80 | 120° | IP65 |
| T8H112‑42 | TH1L35H1120142 | 1210*71*71 | 42W | 0.9 | 6300lm | 110lm/W | 3000K/4000K/5700K/6500K | 80 | 120° | IP65 |
| T8H115‑52 | TH1L35H1150152 | 1500*71*71 | 52W | 0.9 | 7800lm | 110lm/W | 3000K/4000K/5700K/6500K | 80 | 120° | IP65 |
Application scenarios
THRIVELighting Fixtures Application
Widely applicable to industrial and commercial lighting such as workshop,warehouse,Logistics,underground parking lot,garage,food factory,hospital,metro station,corridor,passage,liftway,under bridge etc.
Features of THRIVE LED Tri-proof Light – H series
- ABS or Polycarbonate body,polycarbonate opal diffuser enable it is durable and long-lasting
- Customized requirements such as color, power, lumens are available
- Easy installation,long-term and efficient work,long lifespan and high energy efficiency
- Quick wire connection on the back
- High environmental adaptability,IK08 impact resistance,IP65 protection grade enables it to adapt to various complex and harsh environments
- OEM&ODM customized requirements are acceptable
- Option for extended function for 0-10V,DALI,SENSOR and Emergency
