JA series

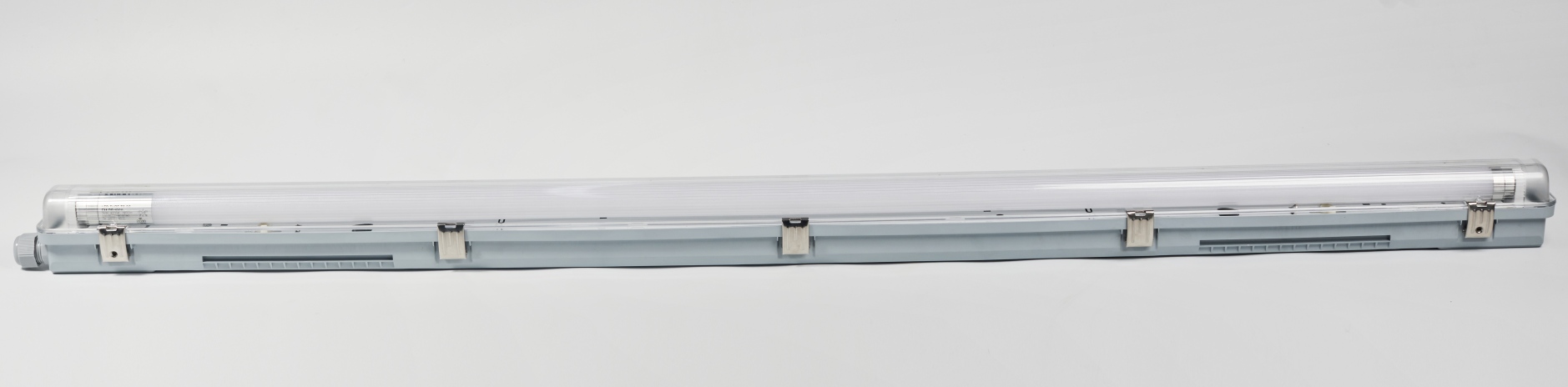

Sturdy, reliable and durable, the JA‑series IP65 LED waterproof light fixture is specially designed for T8 LED tube installation. Built with robust sealed housing, it delivers solid dust‑proof and water‑proof performance for harsh environments. Featuring easy‑open latch design for quick tube replacement and convenient wiring, it is ideal for car parks, warehouses, basements and damp commercial‑industrial areas, supporting stable long‑time operation.
option:
microwave sensor
DALI
dimmable
linkable
EMERGENCY
CCT Switch
Technical Data
| Model | Item Code | Max Power | Length(mm) | Width(mm) | Extend(mm) | Power Factor | Light Efficacy | Lumen | Color Temp(K) | CRI | Beam Angle | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED‑TS136JA | TH135JA1360336 | 1*20W | 1259 | 62.5 | 55.5 | ≥0.9 | 150lm/W | 3000lm | 4000/5700/6500K | >80 | 120° | IP65 |
| LED‑TS236JA | TH135JA2360336 | 2*20W | 1259 | 95 | 55.5 | ≥0.9 | 150lm/W | 6000lm | 4000/5700/6500K | >80 | 120° | IP65 |
Application scenarios
THRIVELighting Fixtures Application
Widely applicable to industrial and commercial lighting such as workshop,warehouse,Logistics,underground parking lot,garage,food factory,hospital,metro station,corridor,passage,liftway,under bridge etc.
Features of THRIVE JA series
- ABS or Polycarbonate body,polycarbonate opal diffuser enable it is durable and long-lasting
- Easy installation,long-term and efficient work,long lifespan and high energy efficiency
- High environmental adaptability,IK08 impact resistance,IP65 protection grade enables it to adapt to various complex and harsh environments
- The stainless steel clips can remain suspended without falling off and interfering with the maintenance work
- OEM&ODM customized requirements are acceptable
