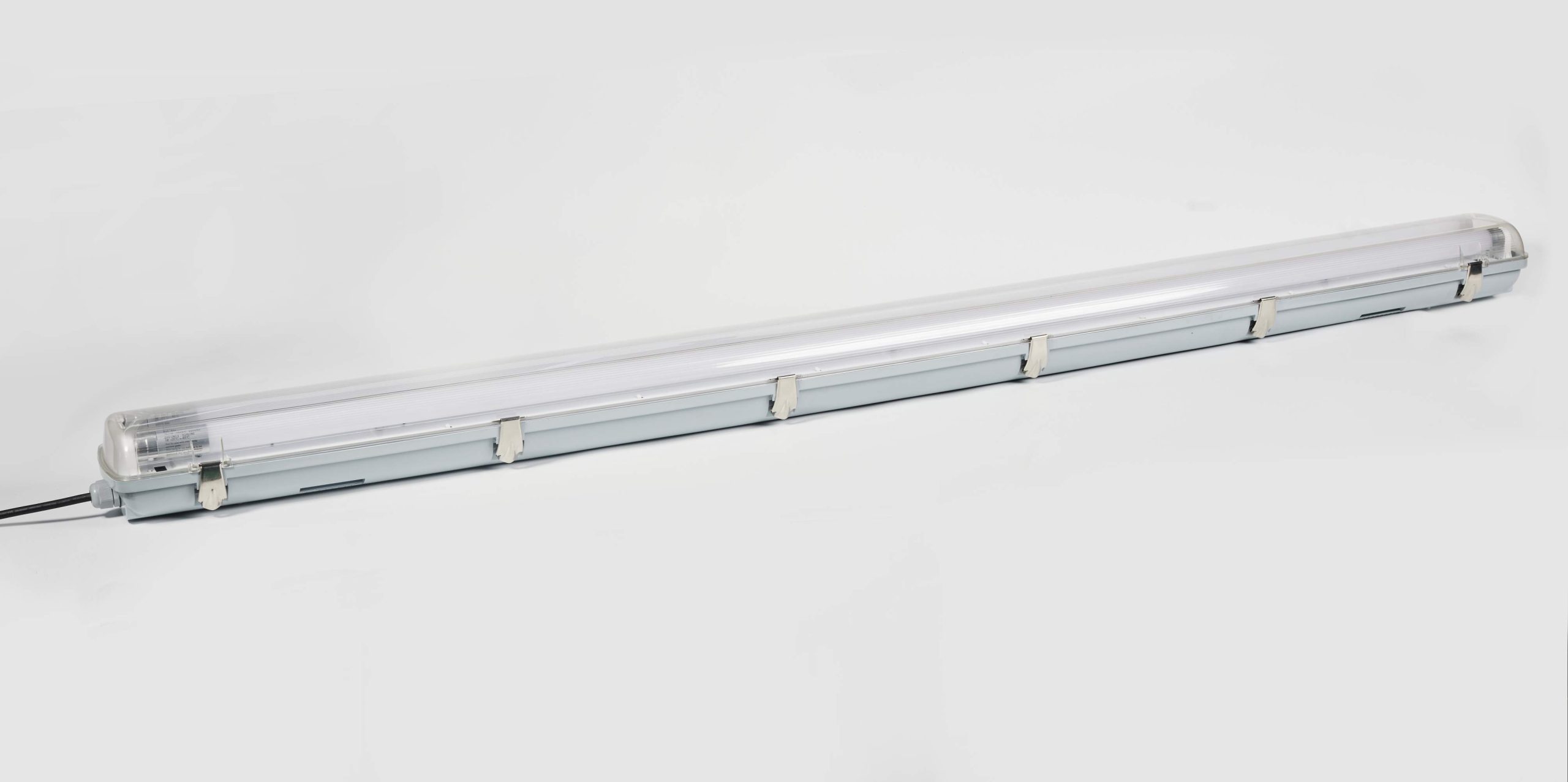

LED Tri-proof Light – I series
Sturdy, reliable and durable, this 3CCT I‑series IP65 LED waterproof light fixture delivers high efficiency and great energy‑saving performance with power options ranging from 9‑51W. It supports 3‑in‑one color temperature selection to meet different lighting demands. The tight sealed housing provides solid dustproof and waterproof protection. It emits even soft light, suitable for warehouses, car parks, basements and other damp commercial & industrial locations with quick and convenient installation.
option:
microwave sensor
DALI
dimmable
linkable
EMERGENCY
CCT Switch
Technical Data
| Model | Item Code | Power Adjustable | Length(mm) | Width(mm) | Extend(mm) | Power Factor | Light Efficacy | Lumen | Color Temp(K) | CRI | Beam Angle | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED‑SMD 118IA | TH135IA1180115 | 9/15W | 600 | 82 | 68 | ≥0.9 | 150lm/W | 2250lm | 4000/6500K | >80 | 120° | IP65 |
| LED‑SMD 136IA | TH135IA1360131 | 18/31W | 1200 | 82 | 68 | ≥0.9 | 150lm/W | 4650lm | 4000/6500K | >80 | 120° | IP65 |
| LED‑SMD 158IA | TH135IA1580151 | 27/31/39/51W | 1500 | 82 | 68 | ≥0.9 | 150lm/W | 7650lm | 4000/6500K | >80 | 120° | IP65 |
Application scenarios
THRIVELighting Fixtures Application
Widely applicable to industrial and commercial lighting such as workshop,warehouse,Logistics,underground parking lot,garage,food factory,hospital,metro station,corridor,passage,liftway,under bridge etc.
Features of THRIVE LED Tri-proof Light – I series
- ABS or Polycarbonate body,polycarbonate opal diffuser enable it is durable and long-lasting
- Customized requirements such as color, power, lumens are available
- Easy installation,long-term and efficient work,long lifespan and high energy efficiency
- High environmental adaptability,IK08 impact resistance,IP65 protection grade enables it to adapt to various complex and harsh environments.
- The stainless steel clips can remain suspended without falling off and interfering with the maintenance work
- OEM&ODM customized requirements are acceptable
- Option for extended function for 0-10V,DALI,SENSOR and Emergency
