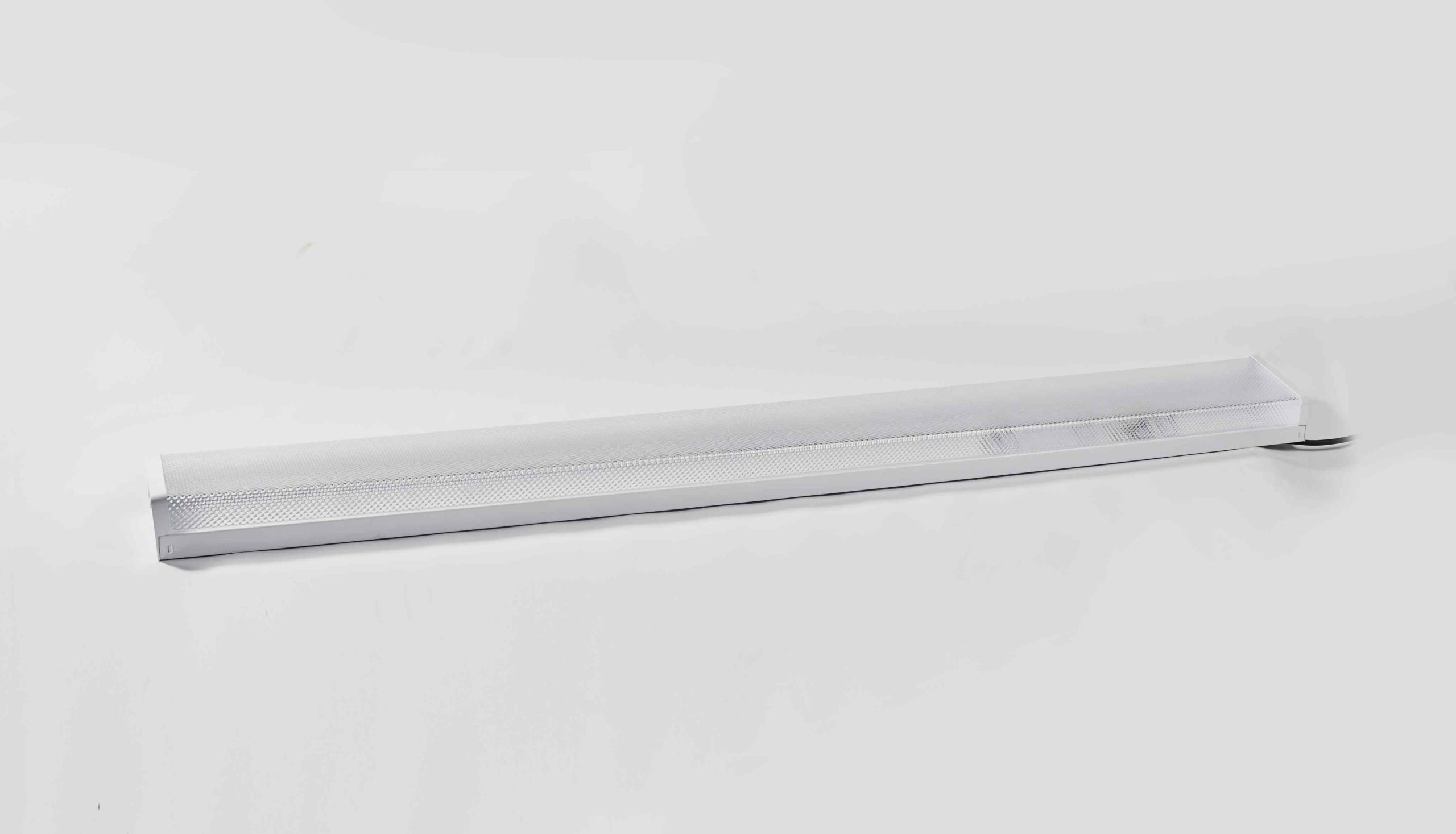

IP65 LED Batten Light – SMD H series
New innovative design with freely interchangeable MW and PIR sensors. Sturdy, reliable, durable, high‑efficiency and energy‑saving 15‑40W SMD H‑series IP65/IP66 LED waterproof light fixture, featuring 140lm/W high efficacy and 3CCT colour temperature adjustable function.
option:
microwave sensor
DALI
dimmable
linkable
EMERGENCY
CCT Switch
Technical Data
| Model | Item Code | Power Adjustable | Length(mm) | Width(mm) | Extend(mm) | Power Factor | Light Efficacy | Lumen | Color Temp | CRI | Beam Angle | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED‑SMD H0.6 | TH1L38H060120 | 15/20W | 600 | 52.5 | 52.5 | ≥0.9 | 140lm/W | 3000lm | 4000/6500K | >80 | 120° | IP65 |
| LED‑SMD H1.2 | TH1L38H120130 | 22/30W | 1200 | 52.5 | 52.5 | ≥0.9 | 140lm/W | 4500lm | 4000/6500K | >80 | 120° | IP65 |
| LED‑SMD H1.5 | TH1L38H150140 | 30/40W | 1500 | 52.5 | 52.5 | ≥0.9 | 140lm/W | 6000lm | 4000/6500K | >80 | 120° | IP65 |
Application scenarios
THRIVELighting Fixtures Application
Widely applicable to industrial and commercial lighting such as workshop,warehouse,Logistics,underground parking lot,garage,food factory,hospital,metro station,corridor,passage,liftway,under bridge etc.
Features of THRIVE IP65 LED Batten Light – SMD H series
- Polycarbonate bi-color extruded housing enable it is durable and long-lasting
- Customized requirements such as color, power, lumens are available
- Easy installation,long-term and efficient work,long lifespan and high energy efficiency
- The end cap can be opened through rotation to do quick wire connection,power selection and CCT adjustment
- High environmental adaptability,IK08 impact resistance,IP65/IP66 protection grade enables it to adapt to various complex and harsh environments.
- OEM&ODM customized requirements are acceptable
- Removable PIR sensor and microwave sensor can be freely replaced
